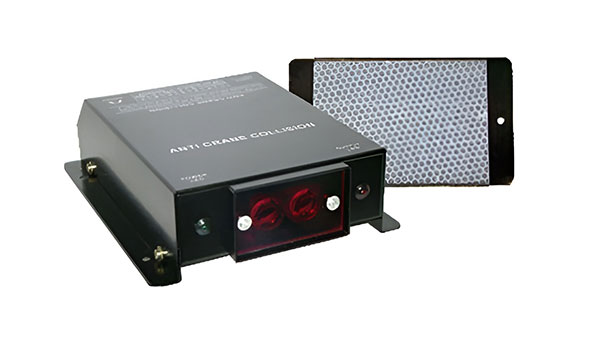

Anti-Collision System
The Anti-Collision System for EOT Cranes is an advanced safety solution designed to prevent collisions between cranes, trolleys, and other obstacles within the working area. It continuously monitors the position, movement, and distance between multiple cranes operating on the same runway.
Using high-precision sensors and intelligent control logic, the system detects potential collision risks in real time and automatically triggers alarms or control actions to slow down or stop crane movement. Its robust industrial design ensures reliable performance in harsh environments, making it an essential safety feature for modern material handling operations.
Features :
- Real-time distance monitoring : Continuously tracks the distance between cranes and obstacles to avoid collisions.
- Automatic warning system : Provides audible and visual alerts when cranes come within a predefined safety range.
- Auto slow-down & stop function : Automatically reduces speed or stops crane movement to prevent accidents.
- High-precision sensors : Ensures accurate detection and reliable performance in dynamic environments.
- Multiple crane synchronization : Supports safe operation of multiple cranes on the same track.
- Rugged industrial design : Built to withstand dust, vibration, and harsh industrial conditions.
Applications :
- EOT Crane Systems Prevents crane-to-crane collisions in shared runway operations.
- Warehouses & Logistics Ensures safe movement of materials in storage and handling areas.
- Steel Plants & Heavy Industries Protects high-value equipment and materials from accidental damage.
- Manufacturing Units Improves operational safety and efficiency in production environments.
- Shipyards & Ports Enhances safety in large-scale lifting and cargo handling operations.
Technical Specifications :
| Specification | Details |
|---|---|
| Power Supply | 110-240VAC |
| Operating Temperature | -20°C to 75°C |
| Detection Range | Up to 100 Meters (Configurable) |
| Sensor Type | Ultrasonic / Laser Based |
| Response Time | ≤ 100 ms |
| Protection Class | IP-65 |
| Output Type | Relay / Alarm Output |
| Mounting Type | Crane Mounted |
