Inclinometer

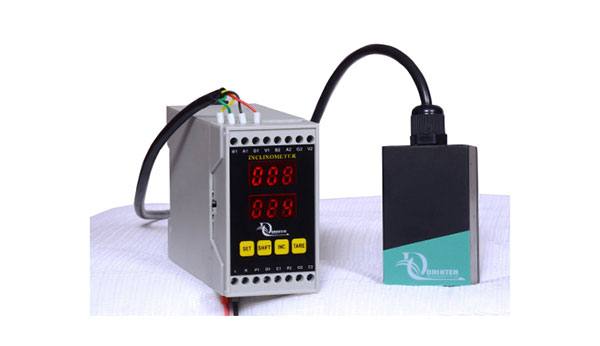

The Inclinometer (Tilt Sensor) is a high-precision, dual-axis industrial device designed to measure the angular position of an object relative to gravity. It continuously monitors inclination across both X and Y axes, ensuring accurate real-time detection of tilt and alignment. By detecting deviations from the earth’s perpendicular axis and converting them into electrical signals, the sensor enables precise monitoring and control in various industrial applications.
Built with a compact, rugged, and industrial-grade housing, the inclinometer performs reliably even in harsh environments involving dust, vibration, and extreme temperatures. It features configurable threshold limits and alert settings that automatically trigger relay outputs when tilt exceeds predefined values, making it ideal for safety-critical operations. Its plug-and-play design allows quick installation with minimal wiring, while the built-in display provides real-time angle visualization for instant system monitoring and improved operational efficiency.
Features :
- Easy to install on any surface : Designed for quick and hassle-free installation on flat or curved surfaces with minimal setup effort.
- 360° (Conical) angle measurement : Provides full angular coverage, enabling accurate tilt detection in all directions.
- Zero angle calibration : Allows users to set a reference position for precise and customized measurements.
- Real-time angle display : Continuously shows live inclination values for instant monitoring and quick decision-making.
- Industrial-grade housing : Built with rugged materials to withstand harsh environments such as dust, vibration, and temperature variations.
Applications :
- Material Handling Ensures safe operation of cranes, conveyors, and lifting equipment by monitoring tilt and alignment.
- Mobile Machines Improves stability and safety in construction equipment like excavators, loaders, and heavy vehicles.
- Boiler Systems Maintains proper alignment and positioning for efficient and safe boiler operations.
- Renewable Energy Used in solar tracking and wind systems to optimize angle positioning for maximum performance.
- Robotic Systems Enhances precision and control in automated and robotic applications.
Technical Specifications :
| Specification | Details | Specification | Details |
|---|---|---|---|
| Input Power Supply | 110-240VAC | Angle Range | ±90° (X-Y axis) |
| Operating Temperature | -20°C to 85°C | Accuracy | ±1% |
| Sensor Housing Type | Aluminium | Display | 0.31 Inch |
| Environmental Protection | IP-65 (Sensor) | Relay Output | 2 (1C @ 2A/250V) |
| Sensor Dimension | 66mm(H) x 50mm(W) x 37mm(D) | Controller Dimension | 75mm(H) x 45mm(W) x 110mm(D) |
| Weight | 0.99 lbs (450 gm) | External Display | 6 Inch (Optional) |
| Mounting Type | Rope / Surface | Cable Length | 5 Meter |
