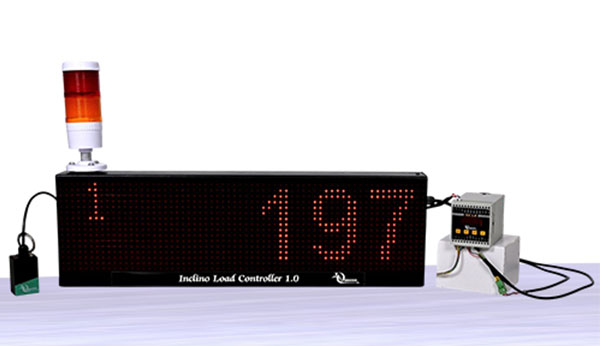

Inclino Load Controller (ILC 1.0)
The Inclino Load Controller (ILC 1.0) is an advanced crane safety system designed to ensure safe lifting operations by continuously monitoring both load weight and side pulling angle. It helps operators maintain crane operation within safe design limits, reducing the risk of overload and unsafe lifting conditions.
Equipped with a high-visibility LED display, the system provides real-time information on lifted weight and angular deviation. It also includes configurable alerts and optional hooter indications for overload and excessive angle conditions, making it a reliable solution for improving operational safety and efficiency.
Features :
- Dual parameter monitoring : Displays both load weight and side pulling angle in real time.
- Easy installation : Plug-and-play design for quick setup in field conditions.
- 360° angle measurement : Conical angle detection for precise tilt monitoring.
- Tare calibration : Allows zero calibration for both load and angle measurements.
- LED display : 5.5/8 inch bright display for clear visibility.
- Industrial-grade housing : Durable construction suitable for harsh environments.
- Hooter alert (optional) : Provides audible alerts for overload and threshold angle conditions.
Applications :
- Material Handling Ensures safe lifting and movement of heavy loads.
- EOT Cranes Monitors load and angle to prevent unsafe crane operations.
- Automation Systems Integrates with industrial systems for enhanced control and safety.
Technical Specifications :
| Specification | Details |
|---|---|
| Input Power Supply | 48VAC / 110VAC / 230VAC (Factory Settable) |
| Angle Range | ±90° (X-Y axis) |
| Load Sensor (Weight) | Wire Rope Type / Pin Type |
| Angle Accuracy | ±1% |
| Accuracy (Weight) | ±2% |
| Angle Sensor Housing | Aluminium |
| Relay Output (Weight) | 2 (2C @ 2A/250V) |
| Relay Output | 2 (2C @ 2A/250V) |
| Controller Dimension | 75mm(H) x 70mm(W) x 110mm(D) |
| Angle Sensor Mounting Type | Wire Rope Type |
| Controller Housing Type | ABS (DIN Rail Mounting) |
| COM Port | RS-485 (MODBUS) |
| LED Display Dimension | 200mm x 640mm x 70mm |
| Cable Length | 5 Meter (For each) |
| LED Display Weight | 11.02 lbs (5 kg) |
| Calibration | Using Manual Keypad |
