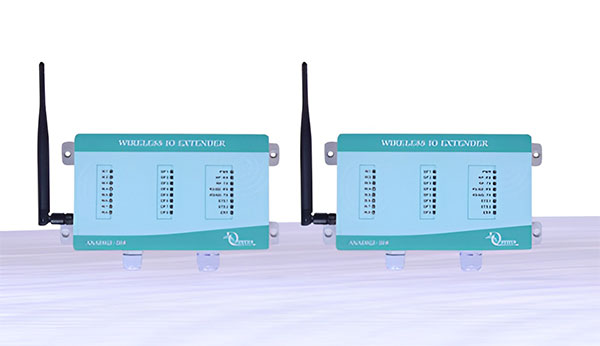

Wireless IO Extender
The Wireless IO Extender is a high-quality and cost-effective solution designed for wireless transmission of analog and digital data, eliminating the need for complex wired sensor networks. It enables seamless communication between field devices using advanced RF technology.
With full duplex communication and bidirectional I/O capability, the system supports multiple digital and analog inputs/outputs, ensuring flexible and reliable data exchange. Its compact IP65-rated housing and Trivanta Equiptech Pvt. Ltd. mounting options make it suitable for demanding industrial environments.
Features :
- Plug and play installation : Easy to install with minimal setup and wiring requirements.
- License-free RF communication : Operates in ISM Band 433 MHz for reliable wireless connectivity.
- Status LED indicators : Displays I/O, RF communication, power, and error status.
- Multi-device support : Multiple systems can operate in the same area without interference.
- Bidirectional I/O communication : Supports both input and output signals on transmitter and receiver ends.
Applications :
- Remote data acquisition Enables wireless monitoring of field data from distant locations.
- Industrial automation Supports intelligent control and data transmission in industrial systems.
- Energy management Helps in monitoring and controlling energy consumption efficiently.
- Material handling systems Facilitates wireless communication in cranes and conveyors.
- Wireless sensor networks Ideal for distributed sensor-based monitoring systems.
Technical Specifications :
| Specification | Details |
|---|---|
| Input Supply Voltage | 85-265 VAC / 24VDC (Factory Settable) |
| Operating Temperature | -20°C to 85°C |
| Frequency Range | ISM Band 433-434 MHz |
| Response Time | Less than 250 mSec |
| Antenna | Rubber Duck Antenna |
| Environmental Protection | IP65 |
| Dimensions | 120mm(H) x 200mm(W) x 75mm(D) |
| Weight | 0.8 lbs (400 gm) |
| Mounting Type | Wall / DIN Rail |
| Safety |
|
| Digital I/O |
|
| Analog I/O |
|
| COM Port | RS-485 (MODBUS) |
Product Variants :
| Model | Digital I/O | Analog I/O @10 Bit | Analog I/O @12 Bit |
|---|---|---|---|
| WDIDO-05 | 5 | - | - |
| WDIGI-10(L/S) | 10 | - | - |
| ANADIGI-210(L/S) | 10 | 2 | - |
| ANADIGI-0404(L/S) | - | 4 | 4 |
Note: Models are available in factory-defined configurations with Long Range (L) communication up to 500-meter LOS and Short Range (S) communication up to 100-meter LOS.
